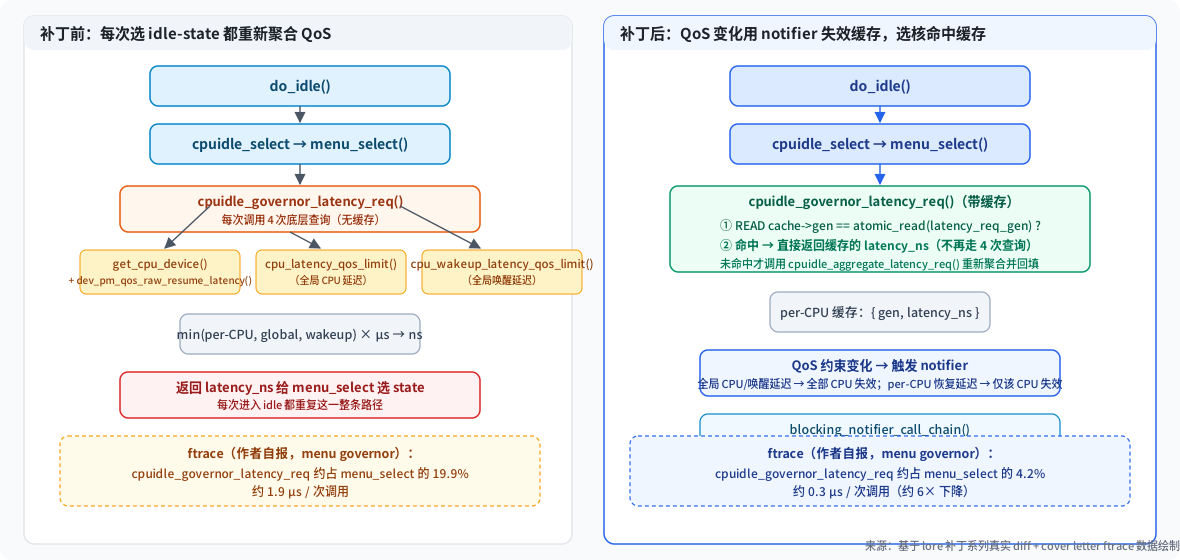

cpuidle：缓存 governor 延迟 QoS 约束，让 do_idle() 的选核路径快约 6 倍

 #ifdef CONFIG_CPU_IDLE
 /* Definitions related to the CPU latency QoS. */

+static BLOCKING_NOTIFIER_HEAD(cpu_latency_qos_notifiers);
+
 static struct pm_qos_constraints cpu_latency_constraints = {
 	.list = PLIST_HEAD_INIT(cpu_latency_constraints.list),
 	.target_value = PM_QOS_CPU_LATENCY_DEFAULT_VALUE,
 	.default_value = PM_QOS_CPU_LATENCY_DEFAULT_VALUE,
 	.no_constraint_value = PM_QOS_CPU_LATENCY_DEFAULT_VALUE,
 	.type = PM_QOS_MIN,
+	.notifiers = &cpu_latency_qos_notifiers,
 };

 static inline bool cpu_latency_qos_value_invalid(s32 value)

+int cpu_latency_qos_add_notifier(struct notifier_block *notifier)
+{
+	return blocking_notifier_chain_register(&cpu_latency_qos_notifiers,
+						notifier);
+}
+EXPORT_SYMBOL_GPL(cpu_latency_qos_add_notifier);

+static DEFINE_PER_CPU(atomic_t, latency_req_gen);
+
+static void cpuidle_latency_req_invalidate_cpu(unsigned int cpu)
+{
+	atomic_inc(per_cpu_ptr(&latency_req_gen, cpu));
+}
+
+static void cpuidle_latency_req_invalidate_all(void)
+{
+	unsigned int cpu;
+
+	for_each_possible_cpu(cpu)
+		cpuidle_latency_req_invalidate_cpu(cpu);
+}
+
+static int cpuidle_global_qos_notify(struct notifier_block *nb,
+				     unsigned long action, void *data)
+{
+	cpuidle_latency_req_invalidate_all();
+	return NOTIFY_OK;
+}
+
+static struct notifier_block cpuidle_latency_qos_nb = {
+	.notifier_call = cpuidle_global_qos_notify,
+};

+int cpuidle_latency_req_notifier_register(unsigned int cpu)
+{
+	struct device *device = get_cpu_device(cpu);
+	struct cpuidle_cpu_qos_nb *qos_nb =
+		per_cpu_ptr(&cpuidle_cpu_qos_nb, cpu);
+
+	if (!device)
+		return -ENODEV;
+
+	qos_nb->cpu = cpu;
+	qos_nb->nb.notifier_call = cpuidle_cpu_qos_notify;
+	return dev_pm_qos_add_notifier(device, &qos_nb->nb,
+				       DEV_PM_QOS_RESUME_LATENCY);
+}

 s64 cpuidle_governor_latency_req(unsigned int cpu)
 {
-	struct device *device = get_cpu_device(cpu);
-	int device_req = dev_pm_qos_raw_resume_latency(device);
-	int global_req = cpu_latency_qos_limit();
-	int global_wake_req = cpu_wakeup_latency_qos_limit();
+	struct cpuidle_latency_req_cache *cache;
+	unsigned int gen;
+	struct device *device;
+	int device_req, global_req, global_wake_req;
+	s64 latency_ns;
+
+	cache = per_cpu_ptr(&latency_req_cache, cpu);
+	gen = atomic_read(per_cpu_ptr(&latency_req_gen, cpu));
+
+	if (likely(READ_ONCE(cache->gen) == gen))
+		return READ_ONCE(cache->latency_ns);
+
+	device = get_cpu_device(cpu);
+	device_req = dev_pm_qos_raw_resume_latency(device);
+	global_req = cpu_latency_qos_limit();
+	global_wake_req = cpu_wakeup_latency_qos_limit();

 	if (global_req > global_wake_req)
 		global_req = global_wake_req;
@@ -223,5 +241,14 @@ s64 cpuidle_governor_latency_req(unsigned int cpu)
 	if (device_req > global_req)
 		device_req = global_req;

-	return (s64)device_req * NSEC_PER_USEC;
+	latency_ns = (s64)device_req * NSEC_PER_USEC;
+
+	WRITE_ONCE(cache->latency_ns, latency_ns);
+	/*
+	 * Store gen last so a concurrent invalidate cannot leave a stale
+	 * latency_ns marked as current.
+	 */
+	WRITE_ONCE(cache->gen, gen);
+
+	return latency_ns;
 }

-static DEFINE_PER_CPU(atomic_t, latency_req_gen);
+static DEFINE_PER_CPU(atomic_t, latency_req_gen) = ATOMIC_INIT(1);
+
+struct cpuidle_latency_req_cache {
+	unsigned int gen;
+	s64 latency_ns;
+};
 ...
-s64 cpuidle_governor_latency_req(unsigned int cpu)
+static s64 cpuidle_aggregate_latency_req(unsigned int cpu)
 {
 	struct device *device = get_cpu_device(cpu);
 	int device_req = dev_pm_qos_raw_resume_latency(device);
 	int global_req = cpu_latency_qos_limit();
 	int global_wake_req = cpu_wakeup_latency_qos_limit();
 ...
-	return (s64)device_req * NSEC_PER_USEC;
 }
+
+s64 cpuidle_governor_latency_req(unsigned int cpu)
+{
+	struct cpuidle_latency_req_cache *cache;
+	unsigned int gen;
+	s64 latency_ns;
+
+	cache = per_cpu_ptr(&latency_req_cache, cpu);
+	gen = atomic_read(per_cpu_ptr(&latency_req_gen, cpu));
+
+	if (likely(cache->gen == gen))
+		return cache->latency_ns;
+
+	latency_ns = cpuidle_aggregate_latency_req(cpu);
+	cache->latency_ns = latency_ns;
+	cache->gen = gen;
+
+	return latency_ns;
+}
