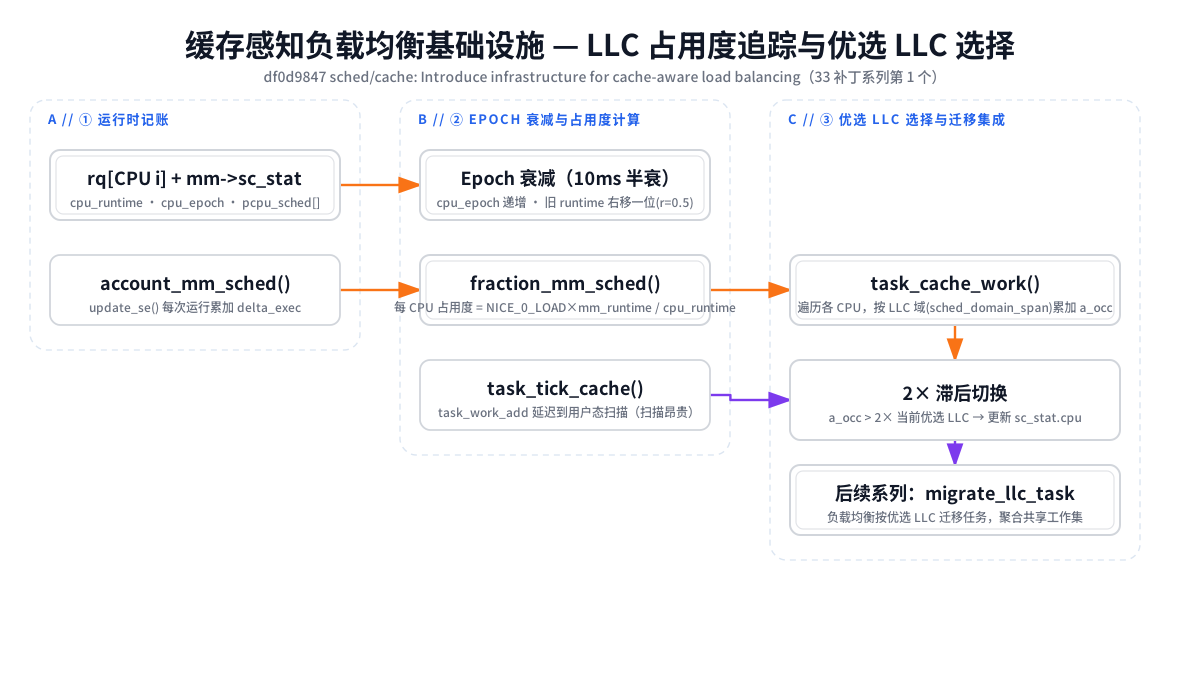

sched/cache：缓存感知负载均衡 — 同进程线程聚合到同一 LLC 减少缓存缺失

+#ifdef CONFIG_SCHED_CACHE
+
+struct sched_cache_time {
+	u64 runtime;
+	unsigned long epoch;
+};
+
+struct sched_cache_stat {
+	struct sched_cache_time __percpu *pcpu_sched;
+	raw_spinlock_t lock;
+	unsigned long epoch;
+	int cpu;
+} ____cacheline_aligned_in_smp;
+
+#else
+
+struct sched_cache_stat { };
+
+#endif

+void account_mm_sched(struct rq *rq, struct task_struct *p, s64 delta_exec)
+{
+	struct sched_cache_time *pcpu_sched;
+	struct mm_struct *mm = p->mm;
+	unsigned long epoch;
+
+	if (!sched_cache_enabled())
+		return;
+
+	if (p->sched_class != &fair_sched_class)
+		return;
+	/*
+	 * init_task, kthreads and user thread created
+	 * by user_mode_thread() don't have mm.
+	 */
+	if (!mm || !mm->sc_stat.pcpu_sched)
+		return;
+
+	pcpu_sched = per_cpu_ptr(p->mm->sc_stat.pcpu_sched, cpu_of(rq));
+
+	scoped_guard (raw_spinlock, &rq->cpu_epoch_lock) {
+		__update_mm_sched(rq, pcpu_sched);
+		pcpu_sched->runtime += delta_exec;
+		rq->cpu_runtime += delta_exec;
+		epoch = rq->cpu_epoch;
+	}
+
+	/*
+	 * If this process hasn't hit task_cache_work() for a while invalidate
+	 * its preferred state.
+	 */
+	if (epoch - READ_ONCE(mm->sc_stat.epoch) > EPOCH_LLC_AFFINITY_TIMEOUT) {
+		if (mm->sc_stat.cpu != -1)
+			mm->sc_stat.cpu = -1;
+	}
+}
+
+static inline void __update_mm_sched(struct rq *rq,
+				     struct sched_cache_time *pcpu_sched)
+{
+	lockdep_assert_held(&rq->cpu_epoch_lock);
+
+	unsigned long n, now = jiffies;
+	long delta = now - rq->cpu_epoch_next;
+
+	if (delta > 0) {
+		n = (delta + EPOCH_PERIOD - 1) / EPOCH_PERIOD;
+		rq->cpu_epoch += n;
+		rq->cpu_epoch_next += n * EPOCH_PERIOD;
+		__shr_u64(&rq->cpu_runtime, n);
+	}
+
+	n = rq->cpu_epoch - pcpu_sched->epoch;
+	if (n) {
+		pcpu_sched->epoch += n;
+		__shr_u64(&pcpu_sched->runtime, n);
+	}
+}
